HEBEL

Hebel is a strong, lightweight building product made from autoclaved aerated concrete (AAC), known for its thermal efficiency, fire resistance, and ease of installation in residential, commercial, and infrastructure projects.

Shop Hebel

At ATS Building Products, we supply the full range of Hebel® autoclaved aerated concrete (AAC) systems, a proven, high-performance building material trusted across the Australian construction industry for over 30 years. As Australia’s only AAC manufacturer, Hebel produces strong yet lightweight blocks and steel-reinforced panels suitable for a wide variety of applications.

Hebel is used extensively in residential, commercial, infrastructure, and civil projects due to its strength, thermal efficiency, and ease of installation. Compared to traditional concrete, Hebel is about one-fifth the weight while still providing excellent structural performance. Panels are reinforced with anti-corrosion steel for added durability and can be made to order for specific project needs.

Through ATS Building Products, builders, engineers, and project managers can access Hebel’s complete AAC range with expert guidance on product selection, compliance requirements, and delivery schedules. Whether for walls, floors, facades, fencing, or acoustic barriers, Hebel delivers speed, efficiency, and confidence on site.

Why Builders Choose Hebel

Hebel products are made from AAC, a precast concrete material with millions of tiny air pockets, resulting in a lightweight yet structurally sound alternative to traditional brick, block, and concrete. You can use Hebel for the following applications:

Residential

• External cladding for houses and townhouses
• Inter-tenancy and boundary walls
• Suspended floors and upper-storey additions
• Decorative facades and fencing

Commercial

• Multi-residential developments
• Retail and office buildings
• Corridor and shaft walls
• Non-loadbearing internal partitions

Infrastructure

• Acoustic barriers for roads and rail
• High-performance fire-rated systems in tunnels and substations

Key advantages include:

Lightweight and efficient – up to 60% lighter than conventional concrete, allowing faster handling and fewer structural loads.
Fire-rated – many Hebel systems are rated for up to 180 minutes of fire resistance (FRL) and are suitable for boundary and internal walls.
Thermal insulation – the internal air pockets provide excellent temperature regulation and energy savings.
Acoustic performance – reduces noise transfer between rooms, dwellings, and external environments.
Durable and low-maintenance – high resistance to rot, termites, and corrosion.
Sustainability – lower environmental impact during manufacture and fewer raw materials required.
Clean aesthetic – ideal for rendering, painting, or as part of a decorative facade system.

Hebel Product Range

ATS Building Products supplies the complete Hebel range. 12 specialist products tailored for external walls, internal walls, flooring, fencing, facade cladding, and infrastructure barriers. Below is a summary of each.

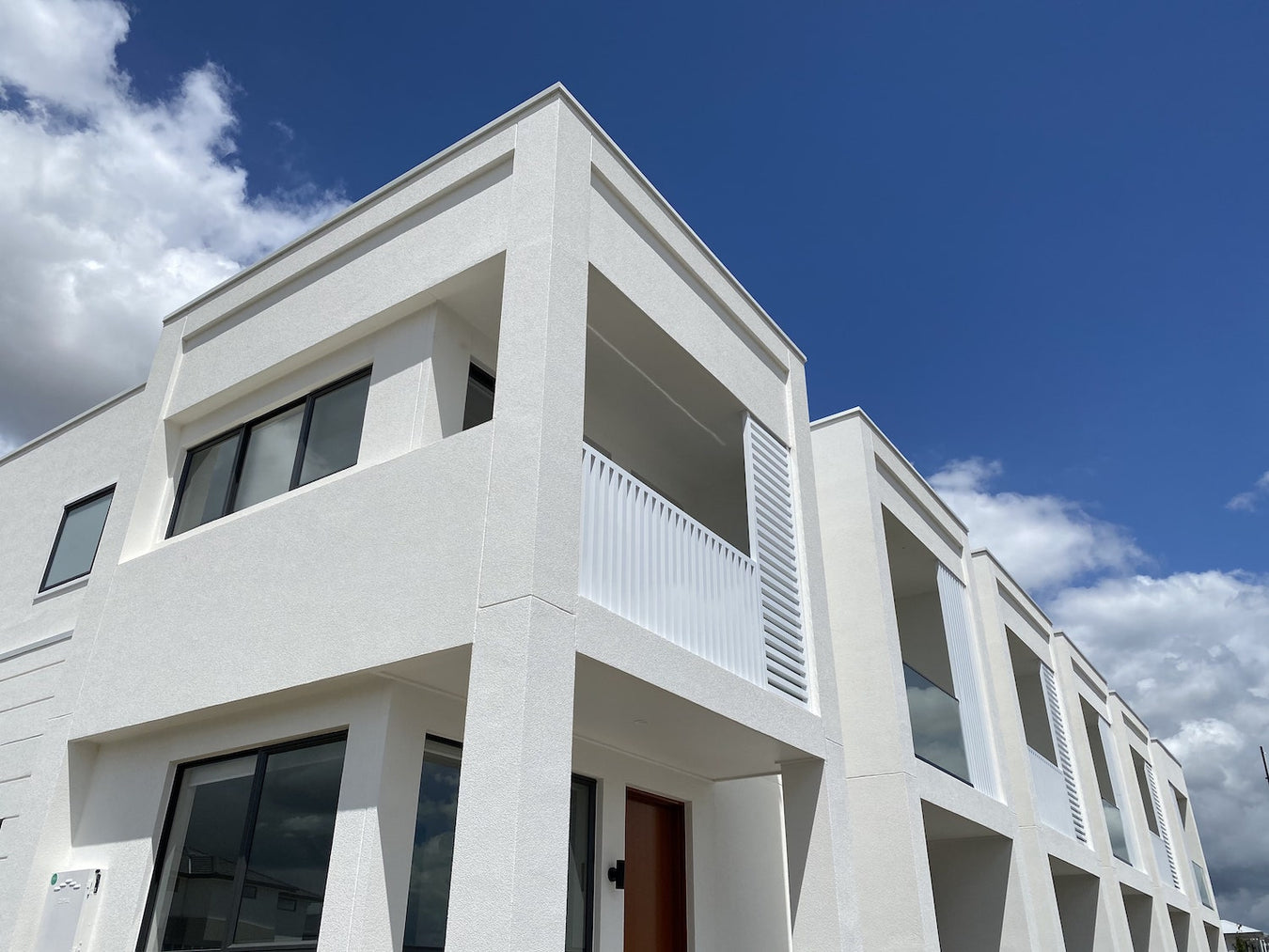

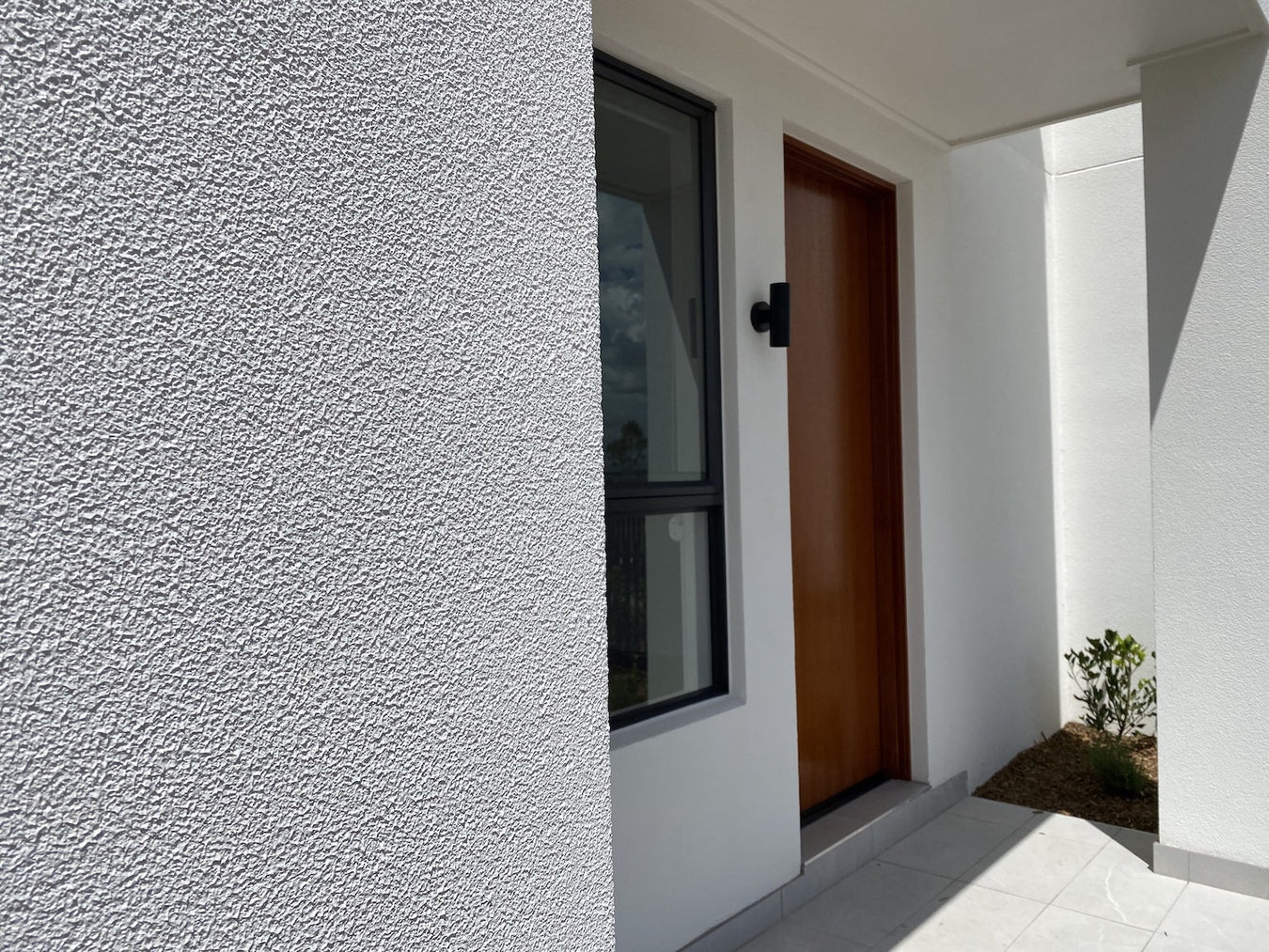

PowerPanelXL

PowerPanelXL stands out with its exceptional fire, acoustic, and thermal performance, meeting or exceeding National Construction Code (NCC) requirements and achieving up to 3 hours of Fire Resistance Level (FRL), making it ideal for bushfire-prone areas. These panels come in various wall heights (2400 to 3300 mm) for minimal cutting and waste, and when installed using Hebel’s patented Top Hat sections, construction is up to 60% faster than traditional masonry.

Product Code	Web Description	Width (mm)	Length (mm)	Thickness (mm)	Mesh Design	Weight Per Pack (kg)	Units Per Pack
118014	PowerPanelXL 2400mm	600	2400	75	Single	804	10
118015	PowerPanelXL 2550mm	600	2550	75	Single	854	10
118016	PowerPanelXL 2700mm	600	2700	75	Single	904	10
118017	PowerPanelXL 2800mm	600	2800	75	Single	938	10
118019	PowerPanelXL 2850mm	600	2850	75	Single	955	10
118020	PowerPanelXL 3000mm	600	3000	75	Single	1005	10
126504	PowerPanelXL 3300mm	600	3300	75	Single	1106	10
MTL 31	MTO PowerPanelXL	600	2400 to 3300	75	Single	-	10

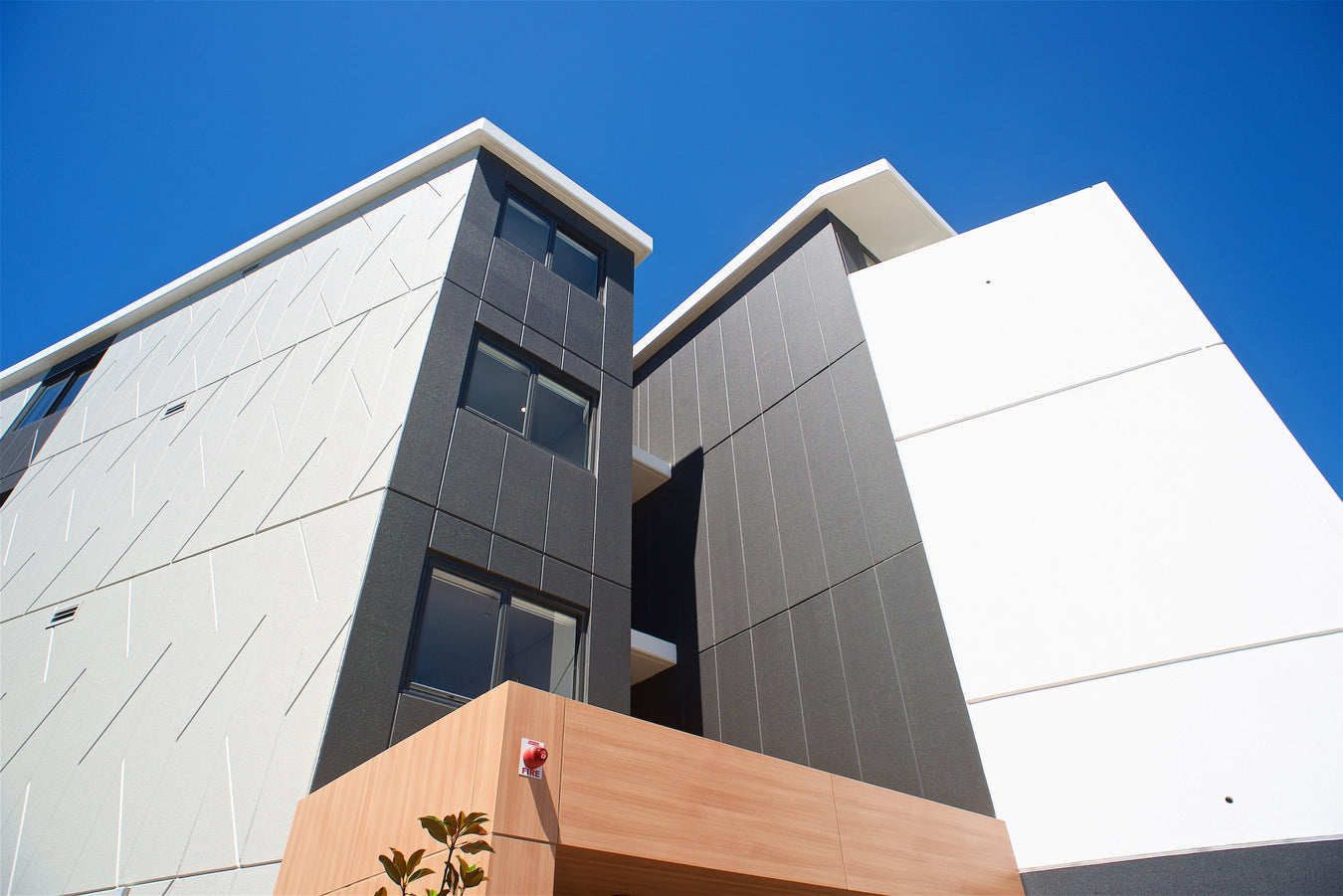

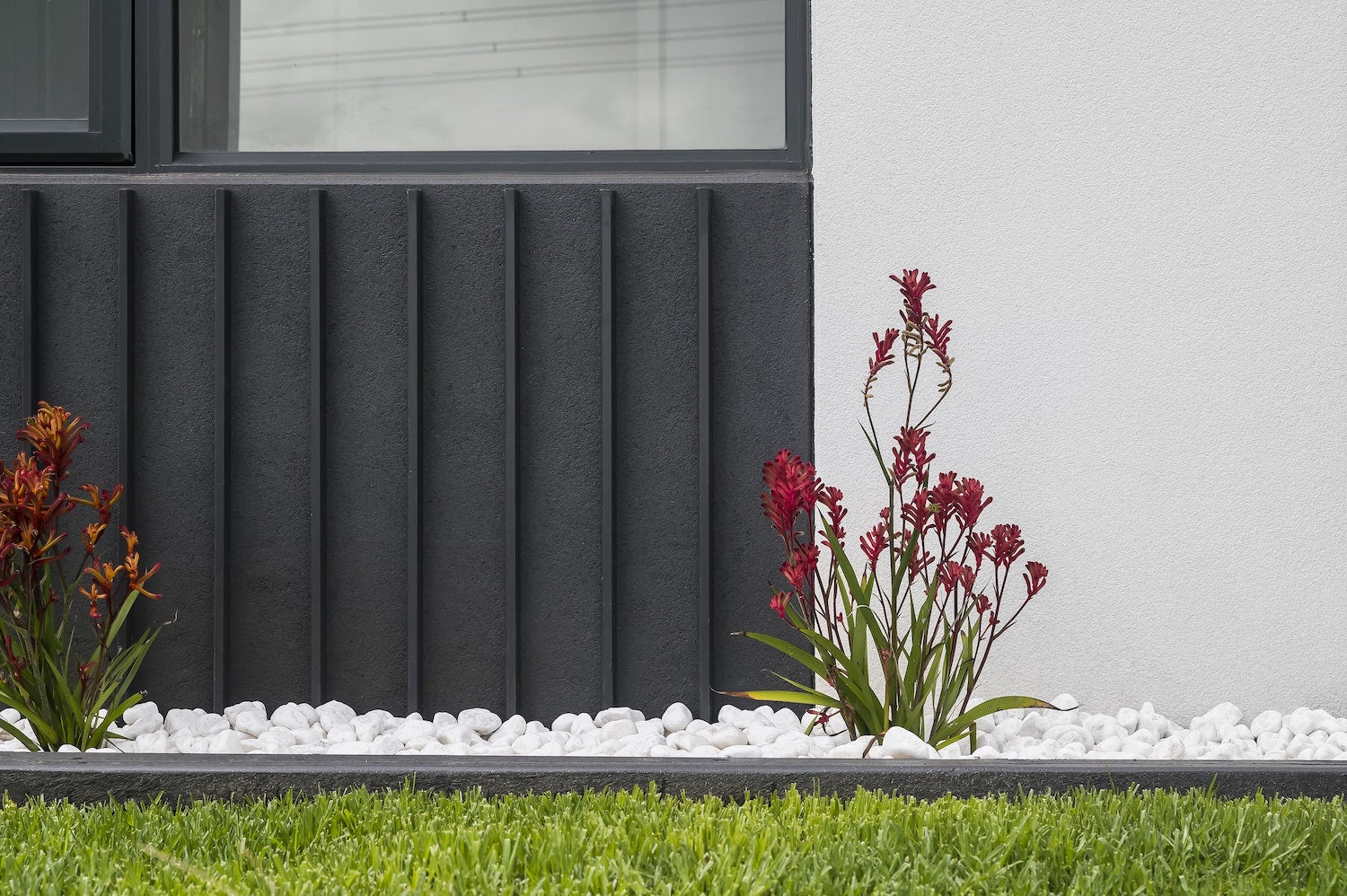

PowerPattern®

PowerPattern Track for houses and low-rise multi residential facades.

PowerPattern Track is available with deep and distinctive V-grooves at 100mm, 150mm, 200mm, 300mm or 600mm intervals. Panel edges are beveled allowing the vertical joints to mimic the V-grooves. Importantly, the 75mm autoclaved aerated concrete (AAC) panels provide strong acoustic and thermal performance not normally associated with traditional timber vertical groove cladding.

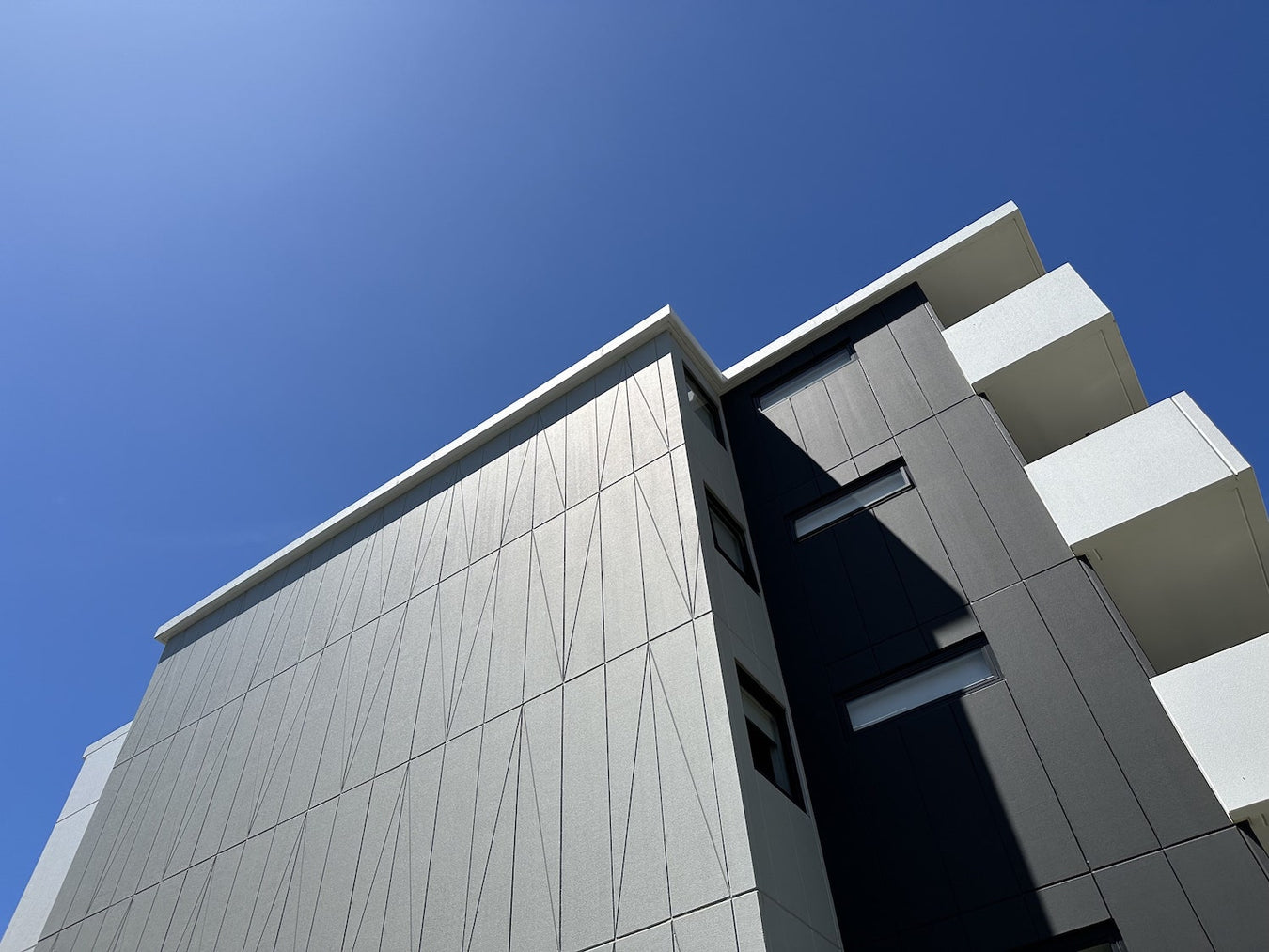

PowerPattern Collections for high-rise facades.

The PowerPattern Collections panels are modular and made-to-order. Each collection has a variety of routed patterns which are designed to work in combination. The sculptured panels can be painted, rendered in premium finishes like polished concrete or metallic coatings.

PowerPattern Track 100mm Groove

Product Code	Web Description	Width (mm)	Length (mm)	Thickness (mm)	Mesh Design	Groove Spacing (mm)	Weight Per Pack (kg)	Units Per Pack
454740	PowerPattern Track 2400mm–100mm Groove	600	2400	75	Single	100mm	804	10
454742	PowerPattern Track 2700mm–100mm Groove	600	2700	75	Single	100mm	905	10
454744	PowerPattern Track 2850mm–100mm Groove	600	2850	75	Single	100mm	955	10
454745	PowerPattern Track 3000mm–100mm Groove	600	3000	75	Single	100mm	1005	10
454746	PowerPattern Track 3300mm–100mm Groove	600	3300	75	Single	100mm	1106	10

PowerPattern Track 150mm Groove

Product Code	Web Description	Width (mm)	Length (mm)	Thickness (mm)	Mesh Design	Groove Spacing (mm)	Weight Per Pack (kg)	Units Per Pack
456713	PowerPattern Track 2400mm–150mm Groove	600	2400	75	Single	150mm	804	10
456715	PowerPattern Track 2700mm–150mm Groove	600	2700	75	Single	150mm	905	10
456717	PowerPattern Track 2850mm–150mm Groove	600	2850	75	Single	150mm	955	10
456718	PowerPattern Track 3000mm–150mm Groove	600	3000	75	Single	150mm	1005	10
456719	PowerPattern Track 3300mm–150mm Groove	600	3300	75	Single	150mm	1106	10

PowerPattern Track 200mm Groove

Product Code	Web Description	Width (mm)	Length (mm)	Thickness (mm)	Mesh Design	Groove Spacing (mm)	Weight Per Pack (kg)	Units Per Pack
454748	PowerPattern Track 2400mm–200mm Groove	600	2400	75	Single	200mm	804	10
454750	PowerPattern Track 2700mm–200mm Groove	600	2700	75	Single	200mm	905	10
454752	PowerPattern Track 2850mm–200mm Groove	600	2850	75	Single	200mm	955	10
454753	PowerPattern Track 3000mm–200mm Groove	600	3000	75	Single	200mm	1005	10
454754	PowerPattern Track 3300mm–200mm Groove	600	3300	75	Single	200mm	1106	10

PowerPattern Track 300mm Groove

Product Code	Web Description	Width (mm)	Length (mm)	Thickness (mm)	Mesh Design	Groove Spacing (mm)	Weight Per Pack (kg)	Units Per Pack
454756	PowerPattern Track 2400mm–300mm Groove	600	2400	75	Single	300mm	804	10
454758	PowerPattern Track 2700mm–300mm Groove	600	2700	75	Single	300mm	905	10
454760	PowerPattern Track 2850mm–300mm Groove	600	2850	75	Single	300mm	955	10
454761	PowerPattern Track 3000mm–300mm Groove	600	3000	75	Single	300mm	1005	10
454762	PowerPattern Track 3300mm–300mm Groove	600	3300	75	Single	300mm	1106	10

PowerPattern Track Custom

Product Code	Web Description	Width (mm)	Length (mm)	Thickness (mm)	Mesh Design	Groove Spacing (mm)	Weight Per Pack (kg)	Units Per Pack
467570	PowerPattern Track 3000mm–Blank	600	3000	75	Single	n/a	1005	10

PowerPattern Prism

Product Code	Web Description	Width (mm)	Length (mm)	Thickness (mm)	Mesh Design	Weight Per Pack (kg)	Units Per Pack
194355	PowerPattern Prism 3000mm P1	600	3000	75	Single	1005	10
194356	PowerPattern Prism 3000mm P2	600	3000	75	Single	1005	10
194357	PowerPattern Prism 3000mm P3	600	3000	75	Single	1005	10
194358	PowerPattern Prism 3000mm P4	600	3000	75	Single	1005	10
194375	PowerPattern Prism 3050mm P1	600	3050	75	Single	1022	10
194376	PowerPattern Prism 3050mm P2	600	3050	75	Single	1022	10
194377	PowerPattern Prism 3050mm P3	600	3050	75	Single	1022	10
194378	PowerPattern Prism 3050mm P4	600	3050	75	Single	1022	10
194395	PowerPattern Prism 3100mm P1	600	3100	75	Single	1039	10
194396	PowerPattern Prism 3100mm P2	600	3100	75	Single	1039	10

PowerPattern Organic

Product Code	Web Description	Width (mm)	Length (mm)	Thickness (mm)	Mesh Design	Weight Per Pack (kg)	Units Per Pack
194367	PowerPattern Organic 3000mm P1	600	3000	75	Single	1005	10
194368	PowerPattern Organic 3000mm P2	600	3000	75	Single	1005	10
194387	PowerPattern Organic 3050mm P1	600	3050	75	Single	1022	10
194388	PowerPattern Organic 3050mm P2	600	3050	75	Single	1022	10
194407	PowerPattern Organic 3100mm P1	600	3100	75	Single	1039	10
194408	PowerPattern Organic 3100mm P2	600	3100	75	Single	1039	10
194427	PowerPattern Organic 3300mm P1	600	3300	75	Single	1106	10
194428	PowerPattern Organic 3300mm P2	600	3300	75	Single	1106	10

PowerPattern Lineal

Product Code	Web Description	Width (mm)	Length (mm)	Thickness (mm)	Mesh Design	Weight Per Pack (kg)	Units Per Pack
194351	PowerPattern Lineal 3000mm P1	600	3000	75	Single	1005	10
194352	PowerPattern Lineal 3000mm P2	600	3000	75	Single	1005	10
194353	PowerPattern Lineal 3000mm P3	600	3000	75	Single	1005	10
194354	PowerPattern Lineal 3000mm P4	600	3000	75	Single	1005	10
194371	PowerPattern Lineal 3050mm P1	600	3050	75	Single	1022	10
194372	PowerPattern Lineal 3050mm P2	600	3050	75	Single	1022	10
194373	PowerPattern Lineal 3050mm P3	600	3050	75	Single	1022	10
194374	PowerPattern Lineal 3050mm P4	600	3050	75	Single	1022	10
194391	PowerPattern Lineal 3100mm P1	600	3100	75	Single	1039	10
194392	PowerPattern Lineal 3100mm P2	600	3100	75	Single	1039	10

PowerPattern Geometric

Product Code	Web Description	Width (mm)	Length (mm)	Thickness (mm)	Mesh Design	Weight Per Pack (kg)	Units Per Pack
194359	PowerPattern Geo 3000mm P1	600	3000	75	Single	1005	10
194360	PowerPattern Geo 3000mm P2	600	3000	75	Single	1005	10
194361	PowerPattern Geo 3000mm P3	600	3000	75	Single	1005	10
194362	PowerPattern Geo 3000mm P4	600	3000	75	Single	1005	10
194363	PowerPattern Geo 3000mm P5	600	3000	75	Single	1005	10
194364	PowerPattern Geo 3000mm P6	600	3000	75	Single	1005	10
194365	PowerPattern Geo 3000mm P7	600	3000	75	Single	1005	10
194366	PowerPattern Geo 3000mm P8	600	3000	75	Single	1005	10
194379	PowerPattern Geo 3050mm P1	600	3050	75	Single	1022	10
194380	PowerPattern Geo 3050mm P2	600	3050	75	Single	1022	10

PowerProfile®

The Power Profile system uses Hebel PowerPanelXL. PowerPanelXL is a 75mm thick autoclaved aerated concrete (AAC) panel with a medium thermal mass that provides very good thermal insulation for a comfortable home. Whereas traditional standing seam cladding made from steel has zero insulation properties.

Hebel PowerProfile ribs should be set out at 300mm centres taking care to avoid control joints by a minimum of 20mm.

Product Code	Web Description	Width (mm)	Length (mm)	Thickness (mm)	Mesh Design	Weight Per Pack	Units Per Pack
118014	PowerPanel XL 2400mm	600	2400	75	Single	804	10
118016	PowerPanel XL 2700mm	600	2700	75	Single	904	10
118019	PowerPanel XL 2850mm	600	2850	75	Single	955	10
118020	PowerPanel XL 3000mm	600	3000	75	Single	1005	10
126504	PowerPanel XL 3300mm	600	3300	75	Single	1106	10

PowerPanel50

The strong and solid panels contain steel reinforcing mesh with an anti-corrosion coating to maximise durability. They’re available in a range of common wall sizes up to 3000mm which helps reduce cutting and waste. PowerPanel50 is non-combustible and suitable for bushfire zones up to BAL (FZ).

They easily achieve fire ratings. External Wall systems also offer good thermal and acoustic performance. Using PowerPanel50, Hebel intertenancy wall and dual zero boundary wall systems require minimal components. This simplifies ordering, logistics, workflow and quality control. They do not require fire-rated plasterboard between floor levels or in roof spaces. They do not require a multitude of fixings and different liners. The simplicity saves time and speeds up construction.

Product Code	Web Description	Width (mm)	Length (mm)	Thickness (mm)	Mesh Design	Weight Per Pack (kg)	Units Per Pack
99939	PowerPanel50 2400mm	600	2400	50	Single	804	15
133805	PowerPanel50 2550mm	600	2550	50	Single	854	15
162758	PowerPanel50 2700mm	600	2700	50	Single	905	15
162756	PowerPanel50 2850mm	600	2850	50	Single	955	15
162760	PowerPanel50 3000mm	600	3000	50	Single	1005	15

PowerPanel®

The strong AAC panels are reinforced with a single steel mesh or multi-layer mesh steel cage. They are lighter than bricks, and up to 75% lighter than precast concrete. They are available in common wall heights up to 4200m. To save time, reduce waste, and reduce cost they can be made-to-length or made-to-order up to 4800m.

PowerPanel Tongue & Groove can be installed vertically or horizontally. For corridor walls and intertenancy walls the panels are installed vertically. For service and shaft walls the panels are installed horizontally, which can be done to a height of 30 metres.

Hebel PowerPanels have Fire Resistance Level (FRL) ratings of -/90/90 minutes for walls up to 3.3 metres with single mesh panels. Or an FRL of -/120/120 minutes for walls up to 4.65 metres with PowerPanel caged.

PowerPanel Residential & Multi-Residential – External & Internal Walls

Product Code	Web Description	Width (mm)	Length (mm)	Thickness (mm)	Mesh Design	Weight Per Pack (kg)	Units Per Pack
118891	PowerPanel 1800mm	600	1800	75	Single	603	10
21965	PowerPanel 2400mm	600	2400	75	Single	804	10

PowerPanel Intertenancy, Corridor, Shaft & Service Wall Systems

Product Code	Web Description	Width (mm)	Length (mm)	Thickness (mm)	Mesh Design	Weight Per Pack (kg)	Units Per Pack
118260	PowerPanel T&G 2700mm	600	2700	75	Caged	905	10
118281	PowerPanel T&G 2800mm	600	2800	75	Caged	938	10
118282	PowerPanel T&G 2850mm	600	2850	75	Caged	955	10
123546	PowerPanel T&G 2900mm	600	2900	75	Caged	972	10
118283	PowerPanel T&G 3000mm	600	3000	75	Caged	1005	10
118284	PowerPanel T&G 3300mm	600	3300	75	Caged	1105	10
MTL 24	Made to Length PowerPanel	600	1800 to 3300	75	Caged	-	10
152225	PowerPanel T&G 3600mm	600	3600	75	Caged	1190	10
152227	PowerPanel T&G 4200mm	600	4200	75	Caged	1385	10
MTO 02	Made to Length PowerPanel	300–600	Up to 4800	75	Caged	-	10

PowerPanel High Rise – Apartment Internal Walls

Product Code	Web Description	Width (mm)	Length (mm)	Thickness (mm)	Mesh Design	Weight Per Pack (kg)	Units Per Pack
118260	PowerPanel T&G 2700mm	600	2700	75	Caged	905	10
118281	PowerPanel T&G 2800mm	600	2800	75	Caged	938	10
118282	PowerPanel T&G 2850mm	600	2850	75	Caged	955	10
123546	PowerPanel T&G 2900mm	600	2900	75	Caged	972	10
118283	PowerPanel T&G 3000mm	600	3000	75	Caged	1005	10
118284	PowerPanel T&G 3300mm	600	3300	75	Caged	1105	10
MTL 24	Made to Length PowerPanel	600	1800 to 3300	75	Caged	-	10
152225	PowerPanel T&G 3600mm	600	3600	75	Caged	1190	10
152227	PowerPanel T&G 4200mm	600	4200	75	Caged	1385	10

PowerPanel High Rise – Apartment External Facades

Product Code	Web Description	Width (mm)	Length (mm)	Thickness (mm)	Mesh Design	Weight Per Pack (kg)	Units Per Pack
22077	PowerPanel 2800mm	600	2800	75	Single	938	10
26048	PowerPanel 2850mm	600	2850	75	Single	955	10
21969	PowerPanel 3000mm	600	3000	75	Single	1005	10
81462	PowerPanel 3300mm	600	3300	75	Single	1105	10
81463	PowerPanel 3600mm	600	3600	75	Caged	1206	10
82055	PowerPanel 4200mm	600	4200	75	Caged	1407	10
MTL 24	Made to Length PowerPanel	600	1800 to 3300	75	Single	-	10
MTO 02	Made to Length PowerPanel	300–600	Up to 4800	75	Caged	-	10

PowerPanel+

The tongue and groove PowerPanel+ panels have a double layer of steel mesh known as “caged” steel reinforcing specifically designed for large panel sizes. Even the large panels are comparatively lightweight compared to precast concrete or concrete formed in situ.

The PowerPanel+ system consists of Hebel panels installed vertically or horizontally to steel or concrete structural framing as a non-load bearing wall. This provides a cost-effective solution, with lightweight panels allowing reduced structural components and smaller lifting equipment compared to concrete.

Product Code	Web Description	Width (mm)	Length (mm)	Thickness (mm)	Mesh Design	Weight Per Pack (kg)	Units Per Pack
21994	PowerPanel+ T&G 2700mm	450	2700	100	Caged	781	10
26481	PowerPanel+ T&G 3000mm	450	3000	100	Caged	867	10
81464	PowerPanel+ T&G 4500mm	600	4500	100	Caged	1734	10
81465	PowerPanel+ T&G 4500mm	600	4500	125	Caged	1626	10
60287	PowerPanel+ T&G 5990mm	600	5990	125	Caged	2164	10
81466	PowerPanel+ T&G 4500mm	600	4500	150	Caged	1626	10
21992	PowerPanel+ T&G 5990mm	600	5990	150	Caged	2164	10
MTO 03	Made to Order PowerPanel+	600	Up to 4000	100	Caged	-	-
MTO 04	Made to Order PowerPanel+	600	Up to 6000	125	Caged	-	-
MTO 05	Made to Order PowerPanel+	600	Up to 6000	150	Caged	-	-

PowerFloor®

Hebel PowerFloor is a high-performance subfloor solution. The 75mm thick Autoclaved Aerated Concrete (AAC) panels are installed over joists in a similar way to tongue and groove cement sheet and particleboard flooring. However, they are more solid under foot and feel more like a concrete slab floor.

The AAC floor panels are almost four times thicker than conventional 19mm structural flooring. This makes Hebel PowerFloor squeak-free and provides high-performance acoustic and thermal insulation properties.

PowerFloor is simple to install. Carpenters can have the floor ready for finishes within 24 hours. Trades can also avoid weather delays since PowerFloor installation is not affected by wet or damp conditions.

The Hebel PowerFloor panels are non-combustible. The system has a Fire Resistance Level (FRL) of 90/90/90 minutes for a fire source above the floor.

Product Code	Web Description	Width (mm)	Length (mm)	Thickness (mm)	Mesh Design	Weight Per Pack (kg)	Units Per Pack
21987	PowerFloor T&G 1800mm	600	1800	75	Single	603	10

PowerFloor+

Load-bearing and spanning up to 5.85m without floor framing or joists, PowerFloor+ is lightweight compared to a traditional concrete slab. Lighter loads achieved by using Autoclaved Aerated Concrete (AAC) panels helps reduce structural requirements like slabs, columns, and footings. Also, PowerFloor+ is made to length resulting in less wastage.

The PowerFloor+ system achieves excellent thermal performance, ensuring thermal ratings are easily met, and once finished it can be covered with a variety of commercial grade floor coverings, making it the ideal choice for commercial or apartment building floors.

Product Code	Web Description	Width (mm)	Length (mm)	Thickness (mm)	Mesh Design	Weight Per Pack (kg)	Units Per Pack
MTO 11	Made to Order PowerFloor+	600	Up to 6000	150	Caged	-	5
MTO 14	Made to Order PowerFloor+	600	Up to 6000	175	Caged	-	4
MTO 17	Made to Order PowerFloor+	600	Up to 6000	200	Caged	-	4
MTO 20	Made to Order PowerFloor+	600	Up to 6000	225	Caged	-	3
MTO 23	Made to Order PowerFloor+	600	Up to 6000	250	Caged	-	3

PowerBlock®

PowerBlocks are 600 mm long. They’re available in 200, 250, 300 and 400 mm widths and thicknesses (heights) from 50mm to 300mm.

This impressive range of sizes makes Hebel PowerBlocks versatile. Larger sizes are used for load bearing external walls up to three storeys. There are also block sizes for non-load bearing interior walls, bathroom hobs and spas. Along with sizes for capping, windowsills and a custom PowerBlock for decoration that is 1200mm wide.

Not only do they satisfy National Construction Code (NCC) requirements, they satisfy homeowners too.

Product Code	Web Description	Width (mm)	Length (mm)	Thickness (mm)	Weight Per Pack (kg)	Units Per Pack
21999	PowerBlock 600×200×50mm	200	600	50	1560	288
22014	PowerBlock 600×200×75mm	200	600	75	1560	204
22015	PowerBlock 600×200×100mm	200	600	100	1560	180
22003	PowerBlock 600×400×100mm	400	600	100	1560	90
22016	PowerBlock 600×200×125mm	200	600	125	1560	144
22017	PowerBlock 600×200×150mm	200	600	150	1560	120
22019	PowerBlock 600×200×200mm	200	600	200	1400	84
22021	PowerBlock 600×200×250mm	200	600	250	1560	72
22023	PowerBlock 600×200×300mm	200	600	300	1560	60
22052	PowerBlock 1200×300×300mm	300	1200	300	1560	20

PowerShield®

PowerShield fire wall systems.

PowerShield is designed to withstand heat up to 1300oC with high fire resistance performance when exposed to Hydrocarbon fires caused by oil and gas. PowerShield can be exposed to the Hydrocarbon Modified (HCM) fire curve for 2 hours. The cellulosic fire resistance level (FRL) is from -/120/120 to -/240/240 minutes depending on the system.

PowerShield acoustic absorption wall systems.

PowerShield panels alone perform well as noise barriers. However, Hebel has a highly effective, tunable acoustic absorption wall system created by adding a second layer of AAC panels. PowerPanel is installed, using Top Hats, onto the side of the PowerShield wall which faces the noise. The PowerPanels are arranged like slats with a calculated horizontal and vertical air gap between them. Panel positions are adjusted to match the resonant frequency required by the project for optimum noise minimisation. They deliver a resonant frequency barrier under 150HZ, far lower than traditional alternatives.

Product Code	Web Description	Width (mm)	Length (mm)	Thickness (mm)	Mesh Design	Units Per Pack
MTO 26	PowerShield 150mm	600	Up to 6000	150	Caged	5
MTO 27	PowerShield 175mm	600	Up to 6000	175	Caged	4
MTO 28	PowerShield 200mm	600	Up to 6000	200	Caged	3
MTO 29	PowerShield 250mm	600	Up to 6000	250	Caged	3
MTO 30	PowerShield 300mm	600	Up to 6000	300	Caged	3

PowerFence®

The Hebel PowerFence system features 75mm thick, steel-reinforced Autoclaved Aerated Concrete (AAC) panels. These modular panels are installed between steel posts with a specially designed PowerFence Bracket Set, allowing for quick and easy installation. This versatile, solid, and durable fencing solution requires no extensive excavation or strip footings like traditional brick fences. Hebel PowerFence is perfect for homes, multi-residential developments, low-rise apartments, and DIY projects.

As boundary fencing, Hebel PowerFence provides greater privacy than slat fences and acts as a noise barrier making them an excellent choice for reducing road noise.

Product Code	Web Description	Width (mm)	Length (mm)	Thickness (mm)	Mesh Design	Weight Per Pack (kg)	Units Per Pack
118891	PowerPanel 1800mm	600	1800	75	Single	603	10
21965	PowerPanel 2400mm	600	2400	75	Single	804	10

SoundBarrier™

The SoundBarrier system can effectively reduce noise by up to 39 decibels. Being lightweight also creates cost-saving construction efficiencies. Like reducing crane sizes and simplifying deliveries to site.

The AAC panels are installed horizontally with galvanised steel I-beam columns in concrete pier foundations. There are two styles of installation. The SoundBarrier panels can be installed in between the I-beam columns making the vertical steel column visible. Or they can be installed against the columns using Zed plates. This hides the vertical columns to give a butt- joined horizontal panel look on the road side.

Product Code	Web Description	Width (mm)	Length (mm)	Thickness (mm)	Mesh Design	Weight Per Pack (kg)	Units Per Pack
21997	SoundBarrier T&G 3000mm	300	3000	100	Caged	578	8
21998	SoundBarrier T&G 4000mm	300	4000	100	Caged	771	8
21996	SoundBarrier T&G 3000mm	600	3000	100	Caged	1156	8
21995	SoundBarrier T&G 4000mm	600	4000	100	Caged	1541	8
38688	SoundBarrier T&G 4000mm	300	4000	125	Caged	723	6
29174	SoundBarrier T&G 4000mm	600	4000	125	Caged	1445	6

Download the Full Hebel Product Guide

Looking for detailed dimensions, FRL ratings, acoustic data, and system diagrams? Download the complete Hebel product brochure below:

Download Hebel Full Product Brochure (PDF)

Why Build With Hebel?

Proven & Compliant

Hebel is the only manufacturer of AAC in Australia. Backed by CSR, Hebel is supported by a team of experts to ensure your design is compliant.

Quality & speed

Building with Hebel can mean faster construction times, without sacrificing quality.

Strong & solid

Hebel panels are high-performance products containing steel reinforcement for added strength with an anti-corrosion layer on the steel for maximum durability.

Fire resistant

Hebel is a non-combustible building material and renowned for its fire-resistant properties.

Supporting Resources

You can contact the ATS team for quotes, supply lead times, or technical support across Australia.

HEBEL

Why Builders Choose Hebel

Key advantages include:
