AFS Rediwall® is a versatile permanent formwork system for below and above-ground wall applications. Its innovative system is made of prefabricated, high-quality panels and interconnecting components that simply snap or slide into place.
AFS Rediwall is a tough, low-maintenance load-bearing reinforced concrete solution that can cut your installation times in half (compared to traditional masonry and blockwork methods).
Versatile PVC formwork system is CodeMark Certified and NCC Compliant for above and below ground applications. CSIRO tested for smoke and fire rating as well as having been deemed water resistant.

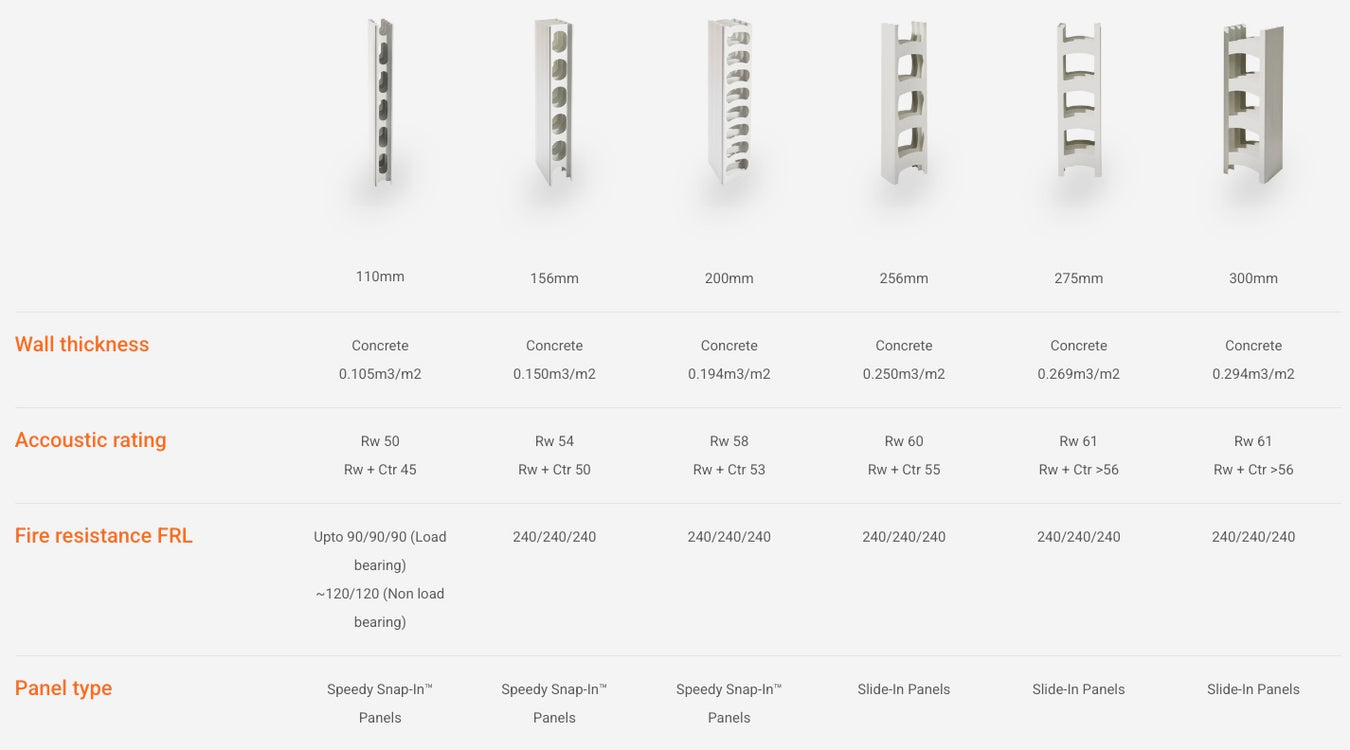

AFS Rediwall extruded components, depending on the selected profile, either simply snap or slide into place, automatically interconnecting for rapid assembly and achieve an attractive, low maintenance wall surface. Available in an industry-leading range of profile widths: 110mm, 156mm, 200mm, 256mm, 275mm & 300mm.
Achieve a variety of compliant solutions with our wide range of accessories. Curved walls can be achieved with our curved range of accessories. The curved accessories integrate seamlessly into the RW200 interlocking panel system, allowing for total wall design flexibility. Easy to install, panels have a minimum curve radius of 0.5 metres, come in 15-degree segment panels, are available in heights of 3m and 3.6m, and are finished in the standard Rediwall colour.
AFS Rediwall requires almost no machinery-aided installation. The high-quality semi-gloss finish requires no additional finishing for most applications.

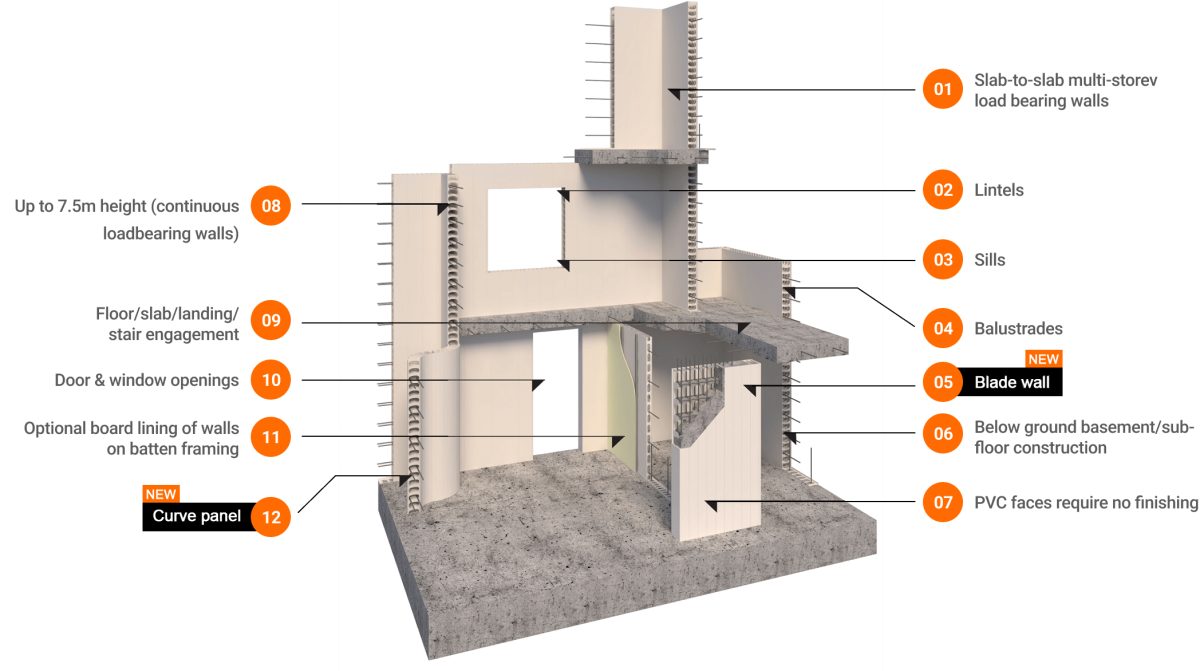

Tough, low-maintenance load-bearing solution for building subterranean structures such as basements and retention tanks, it can also be utilised for overhead applications such as party walls, columns and retaining walls, which makes it a truly versatile solution.
The extruded components simply snap or slide together to create a concrete formwork, erected with maximum efficiency whilst achieving an attractive, low-maintenance wall finish. Suitable PVC system for above and below ground application for residential or commercial use.
Suitable applications:
